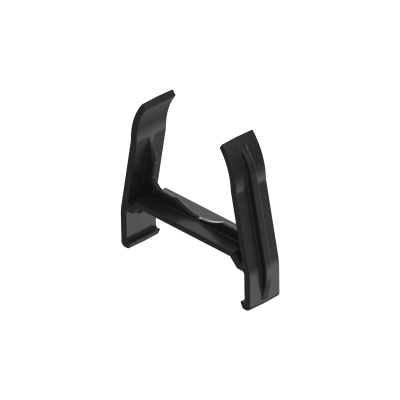

contrik_trussclip_V4_persp front_RGB

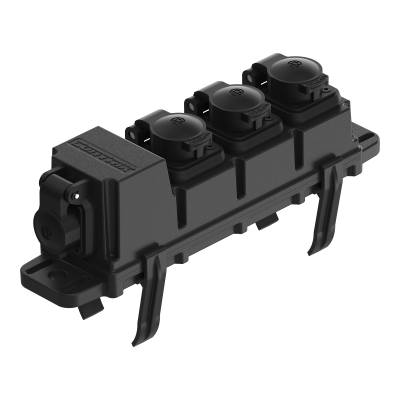

contrik_CPB-T1-T3-trussclips montiert_persp front_RGB
1/2
CONTRIK / Professional Power Distribution / Accessories for Power Distribution / Power Bar Truss Clip CCL60-P2

Power Bar Truss Clip CCL60-P2

Download Data Sheet

The Truss Clip CCL60-P2 is designed for easy and reliable mounting of the Power Bar and opticalBAR onto truss structures. The clip can be clicked directly into the truss — eliminating the need for bulky and expensive accessories.

Features & Benefits
  • Flexible solution: compatible with both Power Bar and opticalBAR units.
  • Easy and reliable installation: click-in mounting onto standard truss structures.
  • Saves space and eliminates the need for large and costly truss clamps.”
  • Prevents loss during setup and transport: can be attached to the product housing with a safety wire (not included in the supply package).
Downloads
Drawing CCL60 P2 1040753 (PDF)
pdf - 112.64 KB
Drawing CCL60 P2 1040753 (DXF)
dxf - 362.33 KB
Drawing CCL60 P2 1040753 (STP)
stp - 1.71 MB

Technical Information

Material
Material Polymer composite
Temperature range -25 °C to +70 °C
Environmental
Standards compatibility UL94 HB
Article Varations
Article nameDetailsOrder code
CCL60-P2

Truss clip set consisting of 2 pcs.

For ⌀48-51mm (1½") truss tubes.

Compatible with Power Bar and opticalBAR

 1040753
