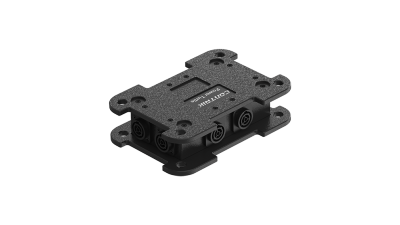

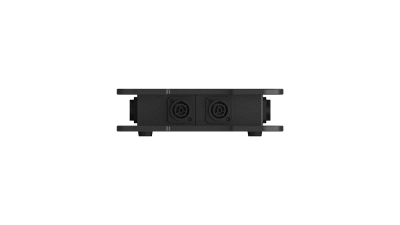

Power Turtle X CPTSX-T1-T7 (U.S.)
1x powerCON TRUE1 IN – 7x powerCON® TRUE1® TOP OUT - Indoor (NEMA1)
EU version: Power Turtle X CPTX-T1-T7
Power Turtle Xtreme (X) is a compact distribution solution for mobile applications. Rugged EASYLEN® housing is ideally suited for demanding applications and harsh conditions. 1x powerCON® TRUE1® TOP In and 7x powerCON® TRUE1® TOP Out.
Features & Benefits
- Extreme robust and safe EASYLEN® housing with leather grain texture
- Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for In, Out and Daisy chaining
- Flame retardant (UL94-V0) and non-conductive housing material
- High mechanical protection (high IK)
- Light weight, compact, lower height (Power Turtle) and stackable housing design
- Versatile mounting options
Downloads
Technical Information
| Product | |
|---|---|
| Input device | 1x powerCON® TRUE1® TOP |
| Output device | 7x powerCON® TRUE1® TOP |
| Daisy chaining | 1x powerCON® TRUE1® TOP |
| Electrical | |
|---|---|
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0.5 kV / mm |
| Rated voltage | 120V AC |
| Rated Current | 20A |
| Number of electrical contacts | 2 + PE |
| Phases | single-phase |
| Mechanical | |
|---|---|
| Lifetime | > 5000 Mating cycles |
| Dimensions | 220 x 150 x 65 mm |
| Conductor cross section | AWG12 |
| Weight | 1.0 kg |
| Mounting options | Truss clamp, mounting wholes for pegging or suspension |
| Type of construction | Stackable |
| Material | |
|---|---|
| Housing | Easylen |
| Color | black |
| Environmental | |
|---|---|
| Standards compatibility | UL94-V0 |
| Protection class | NEMA1 listed. IP20. |
| Temperature range | -25 °C to +70 °C |
| Compliance | |
|---|---|
| Standard Compliance | ETL Listed. Compliant to UL STD 1640 |
Market & Application
- Markets. Professional video wall / lighting / audio
- Mobile application. Festivals, live events
- Semi-permanent applications. Theaters, studios
Article order data
| Article name | Details | Order code |
| CPTSX-T1-T7 | IN: powerCON® TRUE1® TOP OUT: 7x powerCON® TRUE1® TOP Indoor (NEMA1) | 1035610 |
