CCV5RD
Outdoor Power Strip XO with 6 powerCON® TRUE1® TOP out sockets in rugged EASYLEN® housing for harsh environment. Equipped with 3-phase input connector for higher power consumption. Ideally suited for outdoor usage and under harsh conditions.
Selection of topics
Features & Benefits
Downloads
Article Variations
Technical Information
Features & Benefits
- Extreme robust and safe EASYLEN® housing, flame retardant material (UL94 V2)
- IP 65 rated / IK 10+ rated (impact resistant)
- Mounting options / truss clip / truss clamp
- Reliable NEUTRIK® powerCON® TRUE1® TOP recepticals
- Self closing caps
- Daisy chaining
- Light weight and compact design
Article Variations
| Article name | Details | Order code |

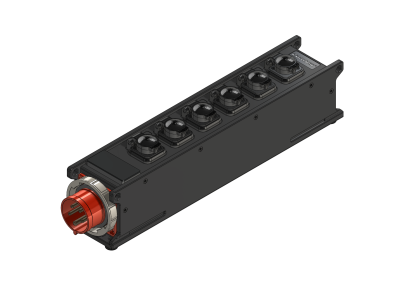

| CCV5RD-6T1-C | 6x powerCON® TRUE1® TOP with CEE16-5 In IP65 Power Strip XO | 1027454 |

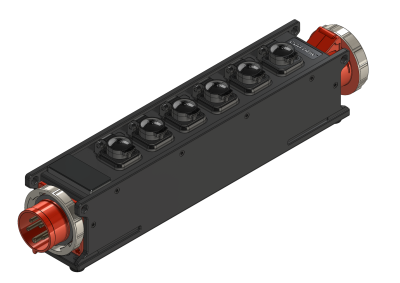

| CCV5RD-6T1-2C | 6x powerCON® TRUE1® TOP with CEE16-5 In and Out IP65 Power Strip XO | 1027455 |
Technical Information
| Product | |
| Input device | CEE16-5 CCV5RD-6T1-C |
| CEE16-5 CCV5RD-6T1-2C | |
| Output device | 6x powerCON® TRUE1® TOP CCV5RD-6T1-C |
| 6x powerCON® TRUE1® TOP with CEE16-5 CCV5RD-6T1-2C | |
| Design | Mobile / portable |
| Electrical | |
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0,5 kV / mm |
| Rated voltage | 250V AC |
| Rated Current | 16A (USA: 20A) |
| Number of electrical contacts | 4 + PE |
| Phases | multi-phase (3+N+PE) |
| Mechanical | |
| Dimensions | 489,6 x 92 x 117,2mm CCV5RD-6T1-C |
| 528,6 x 92 x 117,2mm CCV5RD-6T1-2C | |
| Conductor cross section | 2,5mm2 |
| Material | |
| Housing | Easylen |
| Color | black |
| Environmental | |
| Standards compatibility | UL94-V2 |
| Protection class | IP65 |
| Temperature range | -25 °C bis +40°C |
| Mobile cable | |
| Weight | 1,9kg CCV5RD-6T1-C |
| 2,1kg CCV5RD-6T1-2C |
