CP-BVB5-R v cPot Erdungssystem
CONTRIK / Equipotential Bonding System cPot / Distribution Boxes for cPot system / CP-BVB5-R

CP-BVB5-R

Download Data Sheet

cPot Strip

The cPot Strip is a compact ruggedized distribution box for mobile grounding / potential equalization applications. Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions. 1 x M8 screw connection and 5x cPot male IN/OUT

Features & Benefits
  • Extreme robust and safe EASYLEN® housing with leather grain texture
  • Flame retardant (UL94-V2) and non-conductive housing material
  • High outdoor protection (IP54, IK, ..),
  • Light weight and compact housing design
  • Versatile mounting options
  • Stainless steel screws
  • M10 thread at the bottom

Technical Information

Product
Description CP-BVB5-R
Electrical
Conductor cross section Earth bar
Mechanical
Lifetime > 500 Mating cycles per connector
Locking device Latch lock
Dimensions 220 x 77 x 61 mm
Material
Housing Easylen®
Color black
Environmental
Standards compatibility UL94-V2 (connector)
Protection class IP54 in mated condition
Temperature range -40 °C to 50°C
Accessories

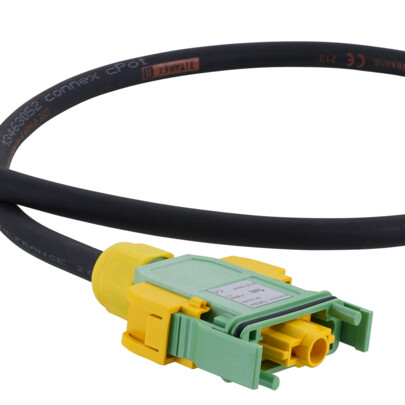

CP-X16-X CONNEX_13463081_cPot_Erdungssystem.tif
CP-X

cPot ready made cables

CCL75-P2
Article Variations
Article name Details Order code
CP-BVB5-R cPot Power Strip. 5x cPot [m] to M8 stainless steel bolt  1027379
