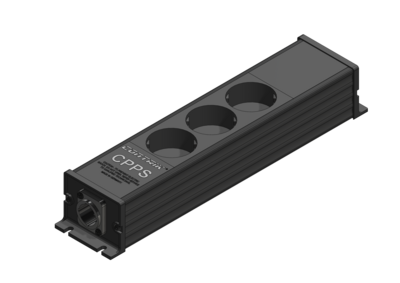

Power Strip CPPS*3-TT (EU)
IN: 1x powerCON TRUE1 TOP – OUT: 3x Schuko, 1x powerCON TRUE1 TOP
Power Strip is a reliable power distribution solution for indoor applications. Equipped with 1x powerCON® TRUE1® TOP In, up to 6x Schuko Outs and 1x powerCON® TRUE1® TOP Out for daisy chaining.
Features & Benefits
Highly reliable NEUTRIK® powerCON® recepticals for In and daisy chaining
Light weight, compact housing
Several mounting options
Market & applications
- Markets: Professional video wall / lighting / audio
- Semi-permanent applications: Theaters, studios,..
- Permanent installations: Lecture hall, auditorium, classrooms,..
Downloads
Technical Information
Product | |
---|---|
Input device | powerCON® TRUE1® TOP CPPSF3-TT |
Output device | CPPSE3-TT: 3 x Schuko Typ E |
CPPSF3-TT: 3 x Schuko Type F | |
Daisy chaining | 1 x powerCON® True1® TOP |
Electrical | |
---|---|
Contact resistance / protection class | Protection class II |
Dielectric strength | 0,5 kV / mm |
Rated voltage | 250V AC |
Rated Current | 16A |
Number of electrical contacts | 2 + PE |
Phases | single-phase |
Mechanical | |
---|---|
Dimensions | 272 x 60 x 46.6 mm |
Conductor cross section | Daisy chaining: 2,5mm² Schuko: 1,5mm² |
Weight | 0.29 kg |
Mounting options | mounting wholes |
Material | |
---|---|
Housing | PVC |
Color | black |
Environmental | |
---|---|
Protection class | IP20 |
Temperature range | -5 °C to +40 °C |
Accessories
Article Variations
Article name | Details | Order code |
CPPSF3-TT | IN: Power Strip with 1x powerCON® TRUE1® TOP - OUT: 3x Schuko Type F |
1027441 |
CPPSE3-TT | IN: Power Strip with 1x powerCON® TRUE1® TOP - OUT: 3x Schuko Type E |
1027596 |
