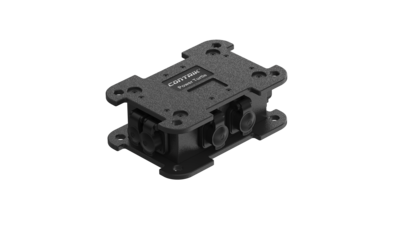

contrik_CPVT7RT_03_persp front

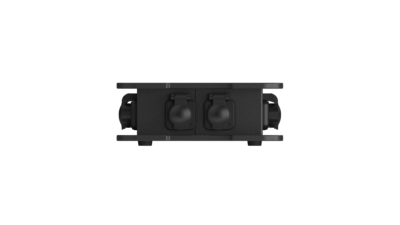

contrik_CPVT7RT_03_front
contrik_CPVT7RT_ 1_persp back

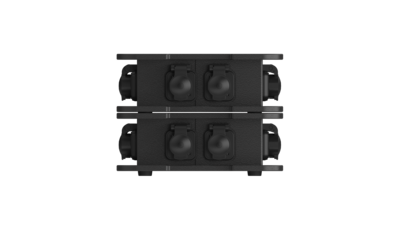

contrik_CPVT7RT_ 1_front
1/4
CONTRIK / Professional Power Distribution / Power Turtles (EU & U.S.) / Power Turtle XO CPVT7RT (EU)

Power Turtle XO CPVT7RT (EU)

Download Data Sheet

Power Turtle Xtreme Outdoor. 1 x powerCON TRUE1 TOP In- 7 x powerCON® TRUE1® TOP Out.

Power Turtle Xtreme Outdoor (XO) is a compact distribution solution for mobile outdoor applications. Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions.



Features & Benefits
  • Extreme robust EASYLEN® housing (high IK) with leather grain texture
  • Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for In, Out and Daisy chaining
  • Flame retardant (UL94-V2) and non-conductive housing material
  • High outdoor protection (IP65)
  • Additional connector protection positioning NEUTRIK® powerCON® TRUE1® TOP and protruding housing tiles
  • Light weight, compact and stackable housing design
  • Versatile mounting options


Market & Application



  • Markets. Professional video wall / lighting / audio
  • Mobile application. Festivals, live events
  • Semi-permanent applications. Theaters, studios
Downloads
CPVT7RT_Drawing_01
pdf - 693.19 KB
41027451_04
octet-stream - 779.46 KB
BDA 675 V1 - CONTRIK Manual - Power Strip XO and Power Turtle XO- CPVT - 202307
pdf - 1.24 MB
BDA 685 V1 - CONTRIK Manual - Power Strip XO and Power Turtle XO- CPVT - 202307
pdf - 1.24 MB

Technical Information

Product
Input device 1x powerCON® TRUE1® TOP with self-closing caps
Output device 7x powerCON® TRUE1® TOP with self-closing caps
Daisy chaining 1x powerCON® TRUE1® TOP with self-closing caps
Electrical
Contact resistance / protection class Protection class II
Dielectric strength 0.5 kV / mm
Rated voltage 250V AC
Rated Current 16A (USA: 20A)
Number of electrical contacts 2 + PE
Phases single-phase
Mechanical
Lifetime > 5000 Mating cycles
Dimensions 220 x 150 x 85 mm
Conductor cross section 2,5 mm²
Weight 1.18 kg
Mounting options Truss clamp, mounting wholes for pegging or suspension
Type of construction Stackable
Material
Housing Easylen
Color black
Environmental
Standards compatibility UL94-V2
Protection class IP65
Temperature range -25 °C to +70 °C
Accessories
audio
powerCON_cable-NAC3F-TRUE1-L-Schuko2_persp front_RGB_WEB.png
powerCON TRUE1 - Schuko cordset rewirable

NEUTRIK® Cables with CEE Mains Plug to powerCON®
audio
powerCON_cable-NAC3F-TRUE1-L-NAC3M-TRUE1-L_persp front_RGB_WEB.png
powerCON TRUE1 - Interconnection cordset rewirable

NEUTRIK® powerCON® TRUE1® Cables
Article order data
Article name Details Order code
CPVT7RT IN: powerCON® TRUE1® TOP - OUT: 7x powerCON® TRUE1® TOP 1027451
