CONTRIK / Professional Power Distribution / Power Container (EU) / POWER CONTAINER XTREME CPCL63-C1-H4C1T6-ROM

POWER CONTAINER XTREME CPCL63-C1-H4C1T6-ROM

Download Data Sheet

On request modification.

IN: 1x CEE63A, OUT: 4x Harting E16, 1x CEE32A, 6x powerCON TRUE1 TOP.

Power Container is a highly reliable, rugged and first level powerful distribution solution.

Features & Benefits
  • High durability & protection: rugged Easylen® housing with high IK, IP44 with CEE / cPot in mated condition, self-closing caps, connector protection, flame retardant & non-conductive housing material
  • Reduction of cabling volume and effort  due to 4x Harting E16 Multipin Outs
  • Easy transport & handling: compact, stackable, fully lockable, integrated handles
  • Minimization of failure impact on the event. Due to separate protection of each Out channel against overload
  • Remote data acquisition via Ethernet and wide range of monitoring and power quality features
  • Neutral conductor current measurement
  • Adjustable residual current and trip time delay
Downloads
Drawing CPCL63-C1-H4C1T6 1038607
pdf - 339.59 KB
BDA 678 V2 - CONTRIK Manual - CONTRIK Power Container EN - 202409
pdf - 2.61 MB
BDA 667 V2 - CONTRIK Manual - CONTRIK Power Container
pdf - 407.57 KB

Technical Information

Product
Input device IN: 1x CEE63A 5P
Output device 4x Harting E16 6ch [1-9] ( 24x RCBO (1-pole+N))
1x CEE32A 5P (1x MCB C32 3-pole+N with adjustable residual current monitoring ABB RD3P with fuse protection)
6x powerCON TRUE1 TOP (parallel to Harting 1)
1x Neutrik EtherCON
1x cPot
Main switch 1x main switch 4-pin
Power meter Janitza UMG96RM-E
Electrical
Phase control indicator L1, L2, L3, green
Rated voltage 400V
Rated Current 63A
Mechanical
Weight
Type of construction Stackable
Material
Housing Easylen®
Color Black
Environmental
Protection class IP44 with CEE and cPot in mated condition
Temperature range -5 to +40°C
Markets & Applications
  • Markets: Professional audio esp. amp rack wiring / lighting / video wall
  • Mobile applications: Festivals, live events. Control panels / rooms.
  • Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.





Ordering Information
Article nameDetailsOrder code

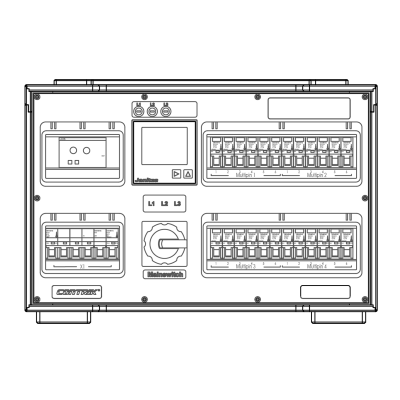

CPCL63-C1-H4C1T6-ROM                                                                                              Front: 24x RCBO (1-pole+N), 1x adjustable residual current monitoring ABB RD3P with fuse protection, 1x measuring device Janitza UMG96RM-E with Ethernet interface, 1x main switch,

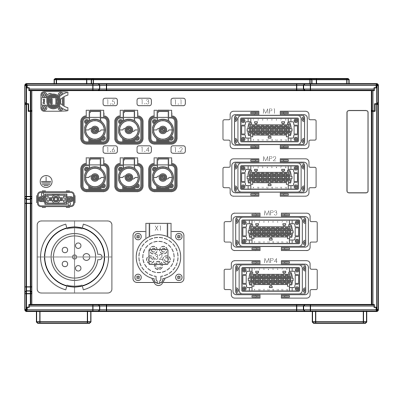

Back: IN: 1x CEE63A  5P, OUT: 4 x Harting E16, 1x CEE32A 5P, 6 x powerCON TRUE1 TOP
1038607
