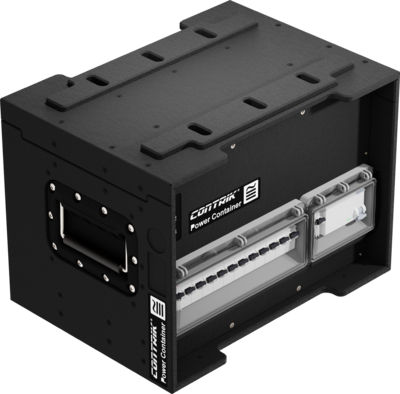

CPC32-C1-H2-CB LQ

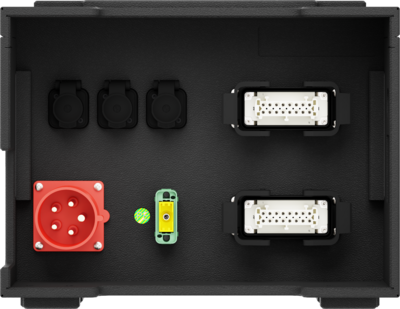

CPC32-C1-H2-CB back

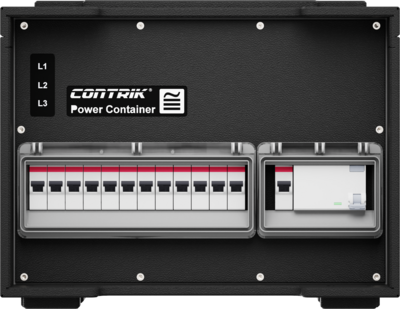

CPC32-C1-H2-CB front
1/3
CONTRIK / Professional Power Distribution / Power Container (EU) / Power Container Xtreme Outdoor CPC32-C1-H2-CB

Power Container Xtreme Outdoor CPC32-C1-H2-CB

Download Data Sheet

1x CEE32A IN- 2x E16 Multipin OUT - 1x cPot OUT – Circuit breakers
Power Container is a highly reliable, rugged and first level powerful distribution solution. The Power Container allows reduction of cabling effort & cost, circuit protection and power measurement. It is ideally suited for demanding mobile applications esp. video walls, lighting, and others.

Features & Benefits
  • High durability & protection: rugged Easylen® housing with high IK, IP44 with CEE / cPot in mated condition, self-closing caps, connector protection, flame retardant & non-conductive housing material
  • Easy transport & handling: compact, stackable, fully lockable, integrated handles
  • Reduction of cabling volume and effort  due to 2x Harting E16 Multipin Outs
  • Minimization of failure impact on the event. Due to separate protection of each Out channel against overload
  • High quality of component and assembly add to high reliability and safety of the power distribution and the event

Markets & Applications


  • Markets: LED walls, Lighting, Other
  • Mobile applications: Festivals, live events
  • Semi-permanent applications: Theaters, studios, fairs
Downloads
Drawing CPC32-C1-H2-CB 41028846
octet-stream - 1.65 MB
Drawing CPC32-C1-H2-CB 41028846
pdf - 359.17 KB
Wiring diagramm CPC32-C1-H2-CBM 1028846
pdf - 32.59 KB
BDA 667 V2 - CONTRIK Manual - CONTRIK Power Container
pdf - 407.57 KB
BDA 678 V2 - CONTRIK Manual - CONTRIK Power Container EN - 202409
pdf - 2.61 MB

Technical Information

Product
Input device 1x CEE32A 5P red
Output device 2x Harting E16 6ch [1-9] (12 RCCBs)< br/>3x PowerCON TRUE1 TOP
1x cPot
Main switch -
Power meter -
Electrical
Circuit protection 1x RCCB (3-pole + N), 13x MCB (1-pole)
Phase control indicator L1, L2, L3, green
Rated voltage 415V/AC, 50Hz
Rated Current In: 32A
Mechanical
Type of construction Stackable
Dimensions ca. 395 x 295 x 270 mm
Material
Housing Easylen®
Color black
Environmental
Protection class IP44 with CEE and cPot connector in mated condition
Temperature range 5 °C to +40 °C
Accessories
audio
powerCON_cable-NAC3F-TRUE1-L-NAC3M-TRUE1-L_persp front_RGB_WEB.png
powerCON TRUE1 - Interconnection cordset rewirable

NEUTRIK® powerCON® TRUE1® Cables

Power multicore cables CKPE50- AHAH-Mx

Cable assemblies Harting E16; 6 channels; female - male; length 5, 10, 20, 30, 40m.
Order information
Product title Details Order code
CPC32-C1-H2-CB

Front. LED mains monitor L1, L2, L3 (after MS); Protection (under self-closing protective windows): 1x RCCB 40/0.03A (3-pole + N) with 13x MCB C16 (3-pole + N).

Back. In: CEE 32A 5-pin plug connector, red; Out: 2x Harting attachment socket HanE 16-pin (6 channels, assignment 1-9) with sealing cap, 3x powerCON TRUE1 built-in socket self-closing caps, cPot earth connection. Housing made of flame-retardant, impact-resistant Easylen® with leather grain; Structure similar to protection class II, IP44, stacking rails at the top, foot runners, folding handles on the side. Dimensions (WTH): approx. 395 x 295 x 405mm

 1028846
