Power Container Xtreme Outdoor CPC63-C1-C4T3F3-RBM
On request modification.
Power Container is a highly reliable, rugged and first level powerful distribution solution.
Features & Benefits
- High durability & protection: rugged Easylen® housing with high IK, IP44 with all connectors in mated condition, self-closing caps, connector protection, flame retardant & non-conductive housing material
- Easy transport & handling: compact, stackable, fully lockable, integrated handles
- High quality of component and assembly add to high reliability and safety of the power distribution and the event
Downloads
Technical Information
| Product | |
|---|---|
| Input device | 1x CEE63A 5P red |
| Output device | 2x CEE 32A 5P (2x MCB32A C 3P, 2x RCCB 40A 30mA 4P) 2x CEE 16A 5P (2x MCB32A C 3P, 2x RCCB 40A 30mA 4P) 3x PowerCON TRUE1 TOP & 3x Schuko F Type (6x MCB16A C 1P, 1x RCCB 40A 30mA 4P) 1x cPot |
| Main switch | 4pol |
| Power meter | Selec MFM 384 |
| Electrical | |
|---|---|
| Phase control indicator | L1, L2, L3, green |
| Rated voltage | 415V/AC, 50Hz |
| Rated Current | In: 63A |
| Mechanical | |
|---|---|
| Type of construction | Stackable |
| Dimensions | ca. 395 x 295 x 405 mm |
| Material | |
|---|---|
| Housing | Easylen® |
| Color | black |
| Environmental | |
|---|---|
| Protection class | IP44 with CEE and cPot in mated condition |
| Temperature range | -5 °C to +40 °C |
Accessories
Markets & Applications
- Markets: LED walls, Lighting, Other
- Mobile applications: Festivals, live events
- Semi-permanent applications: Theaters, studios, fairs
Order information
| Product title | Details | Order code |

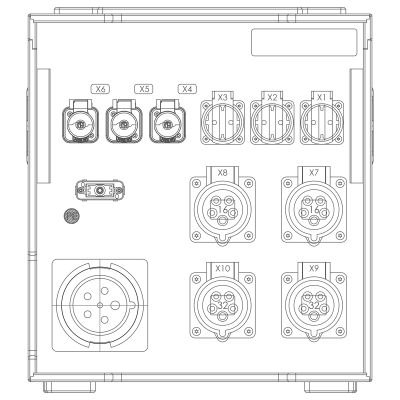

| CPC63-C1-C4T3F3-RBM | Please see the drawing and technical information below. | 1038187 |
