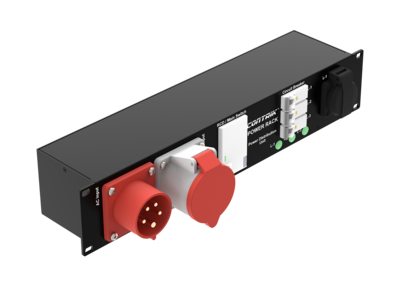

CPR16-C2-T6-CB- Schräg

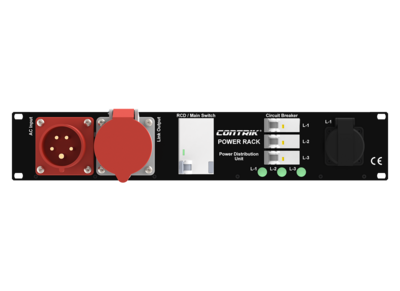

CPR16-C2-T6-CB- FRONT

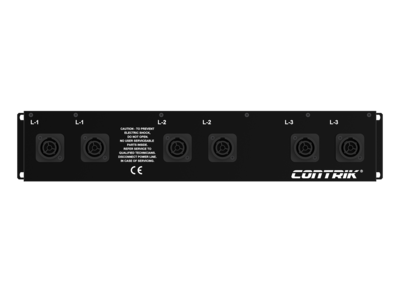

CPR16-C2-T6-CB - HINTEN
1/3
CONTRIK / Professional Power Distribution / Power Racks (EU) / Power Rack Xtreme CPR16-C2-T6F1-CB

Power Rack Xtreme CPR16-C2-T6F1-CB

Download Data Sheet

1x CEE16A In / Daisy chain, 6 x powerCON® TRUE1® TOP & 1 x Schuko Typ F Out

Power Rack Xtreme is a powerful and highly reliable distribution solution for installation in the 19” Rack. It is ideally suited for amplifier rack wiring applications.

Features & Benefits
  • Highly reliable NEUTRIK® powerCON® TRUE1® TOP receptacles for Out
  • High-quality electrical and electronic component from the renowned brands
  • Circuit protection with residual current device (RCCB) and miniature circuit breakers (MCB)
  • High-quality assembly in EU
  • Attractive price / value ratio



Markets & Applications

  • Markets: Professional audio esp. amp rack wiring / lighting / video wall
  • Mobile applications: Festivals, live events. Control panels / rooms.
  • Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.
Downloads
CPR16-C2-T6F1-CB_Drawing_01
pdf - 535.7 KB
CPR16-C2-T6F1-CB_Drawing_01
octet-stream - 1.31 MB
Wiring diagramm CPR16-C2-T6F1-CB 1028799
pdf - 28.16 KB
BDA 677 - Manual - CONTRIK Power Rack Serie - CPR - EN
pdf - 394.63 KB
Product
Input Device 1x CEE16A 5P red (front)
Daisy Chain 1x CEE16A 5P red (daisy chain) front
Output Device 6x powerCON TRUE1 TOP (back)
1x Schuko Typ F socked with lid (front)
Electrical
Circuit Protection 1x RCCB 40/0,03A (3-pole + N)
3x MCB C16 (1-pole)
Phase Control Indicator L1, L2, L3, green
Rated Voltage 415 V/AC, 50 Hz
Rated Current CEE socket: 415 V Link
Schuko & powerCON TRUE1 TOP socket: 230 V 16 A
Mechanical
Weight 3.8 kg
Type of Construction 19“ Housing 2 HE, 1.5 TE
Dimensions 483 x 88 x 104 mm (without fittings)
Material
Housing Metal
Color Black
Environmental
Protection Class IP20
Temperature Range -5 to +40°C
Accessories
audio
powerCON_cable-NAC3F-TRUE1-L-NAC3M-TRUE1-L_persp front_RGB_WEB.png
powerCON TRUE1 - Interconnection cordset rewirable

NEUTRIK® powerCON® TRUE1® Cables

audio
powerCON_cable-NAC3F-TRUE1-L-Schuko2_persp front_RGB_WEB.png
powerCON TRUE1 - Schuko cordset rewirable

NEUTRIK® Cables with CEE Mains Plug to powerCON®

Ordering information

Article name Details Order code

CPR16-C2-T6F1-CB

Front: IN 1x CEE16A; Daisy chain 1x CEE16A; OUT 1x Schuko Type F; Circuit protection: 1x RCCB (3-pole + N), 3x MCB (1-pole).
Back: OUT 6x powerCON TRUE1 TOP

1028799
