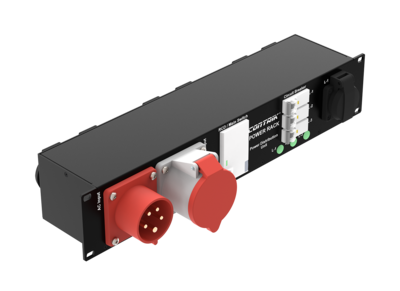

Power Rack Xtreme CPR32-C2-F7-CB
1x CEE32A In / Daisy chain – 7 x Schuko Typ F Out.
Power Rack Xtreme is a powerful and highly reliable distribution solution for installation in the 19” Rack. It is ideally suited for amplifier rack wiring application.
Features & Benefits
- High quality electrical and electronical component from the renowned brands
- Circuit protection with residual current device (RCCB) and miniature circuit breakers (MCB)
- High quality assembly in EU
- Attractive price / value ratio
Markets & Applications
- Markets: Professional audio esp. amp rack wiring / lighting / video wall
- Mobile applications: Festivals, live events. Control panels / rooms.
- Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.
Downloads
Technical Information
| Product | |
|---|---|
| Input device | 1x CEE32A 5P red (front) |
| Daisy chain | 1x CEE32A 5P red (daisy chain) front |
| Output device | 7x Schuko socket with lid |
| Electrical | |
|---|---|
| Circuit protection | 1x RCCB 40/0,03A 3x MCB 1pol C16 |
| Phase control indicator | L1, L2, L3, green |
| Rated voltage | 415V/AC, 50Hz |
| Rated Current | CEE socket: 415V Link Schuko socket 230V 16A |
| Mechanical | |
|---|---|
| Weight | 3,8kg |
| Type of construction | 19“ Housing 2 HE, 1,5TE |
| Dimensions | 483 x 88 x 104 mm (without fittings) |
| Material | |
|---|---|
| Housing | Metal |
| Color | black |
| Environmental | |
|---|---|
| Protection class | IP20 |
| Temperature range | -5 to +40°C |
Accessories
Ordering information
| Article name | Details | Order code |

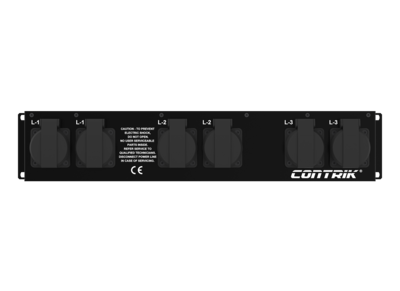

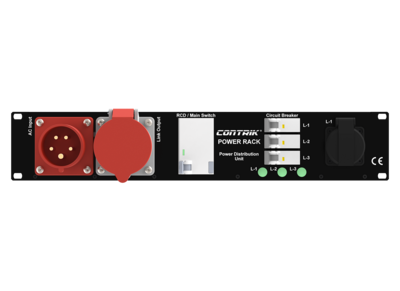

| CPR32-C2-F7-CB | FRONT: IN 1x CEE32A; Daisy chain 1x CEE32A; OUT 1x Schuko Type F; Circuit protection: 1x RCCB, 3x MCB. BACK: OUT 6x Schuko Type F |
1028798 |
