CONTRIK / Professional Power Distribution / Power Racks (EU) / POWER RACK XTREME CPRX32-C1-H2-RB

POWER RACK XTREME CPRX32-C1-H2-RB

Download Data Sheet

On request modification.

Power Rack Xtreme is a powerful and highly reliable distribution solution for installation in the 19” Rack. It is ideally suited for amplifier rack wiring application.

Features & Benefits
  • High quality electrical and electronical component from the renowned brands
  • Circuit protection with residual current device (RCCB) and miniature circuit breakers (MCB)
  • High quality assembly in EU
  • Attractive price / value ratio
Downloads
41038248 CPRX32-C1-H2-RB
pdf - 106.69 KB

Technical Information

Product
Input device 1x Input cable 2m 1x CEE32A
Daisy chain
Output device 2x Harting E16 6ch [1-9] (12x MCB 1P, 2x RCCB 40A 3P+N)
1x cPot
Main switch
Power meter
Electrical
Phase control indicator
Rated voltage 400V
Rated Current 32A
Mechanical
Weight
Type of construction 19“ Housing 3 HE
Material
Housing Metal
Color Black
Environmental
Protection class IP20
Temperature range -5 to +40°C
Accessories
Power multicore cables CKPE50- AHAH-Mx

Cable assemblies Harting E16; 6 channels; female - male; length 5, 10, 20, 30, 40m.
startpage
contrik_CPSM-H2-T6_persp front_RGB_WEB.png
Power Strip Multicore CPSM-H2-T6
Markets & Applications
  • Markets: Professional audio esp. amp rack wiring / lighting / video wall
  • Mobile applications: Festivals, live events. Control panels / rooms.
  • Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.



Ordering information
Article nameDetailsOrder code

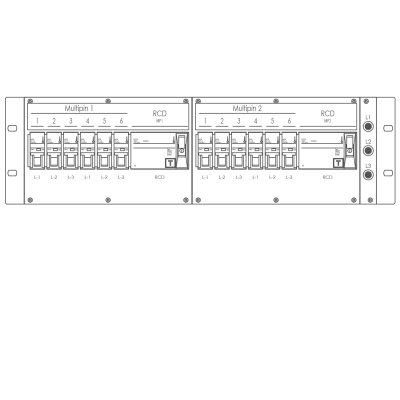

CPRX32-C1-H2-RB                      Front: 12x MCB (1-pole), 2x RCCB (3-pole + N),

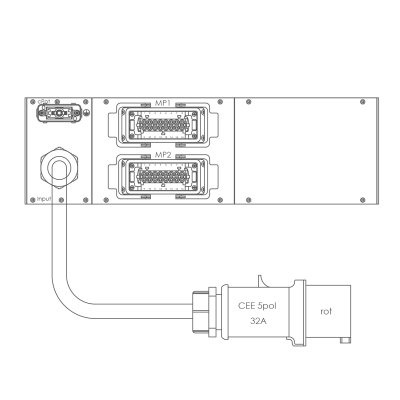

Back: IN: 1x Input cable 2m, 1x CEE32A, OUT: 2 x Harting E16 6ch [1-9] .                                   		1038248
