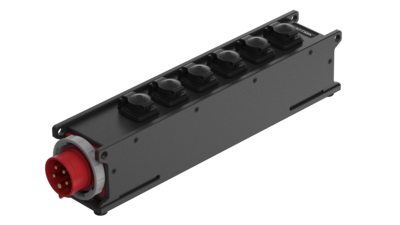

contrik_CCV5RD-6T1-C_persp front

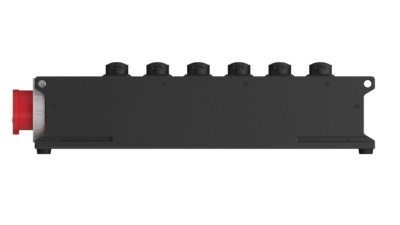

contrik_CCV5RD-6T1-C_front

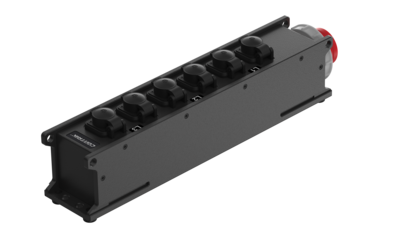

contrik_CCV5RD-6T1-C_persp back
1/3
CONTRIK / Professional Power Distribution / Power Strips (EU & U.S.) / Power Strip XO CCV5RD-6T1-C (EU)

Power Strip XO CCV5RD-6T1-C (EU)

Download Data Sheet

1x CEE16A IN - 6x powerCON TRUE1® TOP OUT


Power Strip Xtreme Outdoor (XO) is a compact distribution solution for mobile outdoor applications. Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions. 1x CEE16A In and up to 6x  powerCON® TRUE1® TOP Out.

Features & Benefits
  • Extreme robust and safe EASYLEN® housing with leather grain texture
  • Mains receptacles CEE16A In & daisy chaining and highly reliable NEUTRIK® powerCON® TRUE1® TOP Out
  • Flame retardant (UL94-V2) and non-conductive housing material
  • High outdoor protection (IP65, IK, ..)
  • Light weight, compact and stackable housing design
  • Versatile mounting options


Applications and markets


  • Main markets: Professional video walls, event lighting, pro-audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications:  Theaters, studios
Downloads
CCV5RD-6T1-C_Drawing_01
pdf - 482.69 KB
CCV5RD-6T1-C_Drawing_01
vnd.dwg - 1.27 MB
BDA 671 - Manual - CONTRIK Power Strip XO - CCV5RD - DE
pdf - 837.42 KB
BDA 681 - Manual - CONTRIK Power Strip XO - CCV5RD - EN
pdf - 835.28 KB

Technical Information

Product
Input device 1 x CEE16-5
Output device 6 x powerCON® TRUE1® TOP
Daisy chaining none
Electrical
Contact resistance / protection class Protection class II
Dielectric strength 0.5 kV / mm
Rated voltage 400 V AC
Rated Current 16 A
Number of electrical contacts 4 + PE
Phases multi-phase (3+N+PE)
Mechanical
Dimensions 489.6 x 92 x 117.2mm
Conductor cross section 2.5 mm²
Weight 2.1 kg
Mounting options Truss clip, truss clamp, mounting wholes for pegging or suspension
Material
Housing Easylen
Color black
Environmental
Standards compatibility accotding to UL94 V2
Protection class IP65
Temperature range -25 °C bis +40°C
Accessories
CCL90-P2

Truss clips 90 mm / pipe: 48 mm for Power Strip X and Power Strip XO

audio
powerCON_cable-NAC3F-TRUE1-L-NAC3M-TRUE1-L_persp front_RGB_WEB.png
powerCON TRUE1 - Interconnection cordset rewirable

NEUTRIK® powerCON® TRUE1® Cables

audio
powerCON_cable-NAC3F-TRUE1-L-Schuko2_persp front_RGB_WEB.png
powerCON TRUE1 - Schuko cordset rewirable

NEUTRIK® Cables with CEE Mains Plug to powerCON®

Ordering Information
Article name Details Order code
CCV5RD-6T1-C  IN: 1xCEE16A - OUT: 6x powerCON® TRUE1® TOP  1027454
