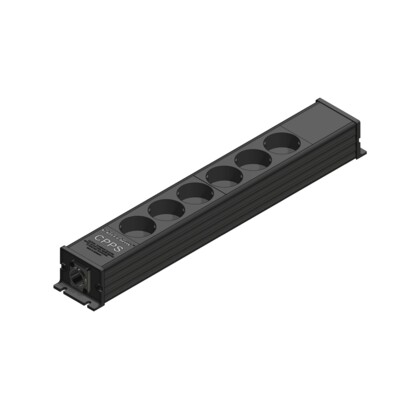

Power Strip CPPS*6-TT (EU)
IN: 1x powerCON TRUE1 TOP IN – OUT: 6 x Schuko, 1x powerCON TRUE1 TOP
Power Strip is a reliable power distribution solution for indoor applications. Equipped with 1x powerCON® TRUE1® TOP IN, up to 6x Schuko OUT and 1x powerCON® TRUE1® TOP OUT for daisy chaining.
Features & Benefits
Highly reliable NEUTRIK® powerCON® recepticals for In and daisy chaining
Light weight, compact housing
Several mounting options
Market & applications
- Markets: Professional video wall / lighting / audio
- Semi-permanent applications: Theaters, studios,..
- Permanent installations: Lecture hall, auditorium, classrooms,..
Downloads
Technical Information
| Product | |
|---|---|
| Input device | 1 x powerCON® TRUE1® TOP |
| Output device | CPPSE6-TT: 6x Schuko Typ E CPPSF6-TT: 6x Schuko Type F |
| Daisy chaining | 1x powerCON® TRUE1® TOP |
| Electrical | |
|---|---|
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0,5 kV / mm |
| Rated voltage | 250V AC |
| Rated Current | 16A |
| Number of electrical contacts | 2 + PE |
| Phases | single-phase |
| Mechanical | |
|---|---|
| Dimensions | 398 x 60 x 46.6 mm |
| Conductor cross section | Daisy chaining: 2.5 mm² Schuko; 1.5 mm² |
| Weight | 0.43 kg |
| Mounting options | mounting wholes |
| Material | |
|---|---|
| Housing | PVC |
| Color | black |
| Environmental | |
|---|---|
| Protection class | IP20 |
| Temperature range | -5 °C bis +40 °C |
Accessories
Article Variations
| Article name | Details | Order code |
| CPPSF6-TT |
IN: 1x powerCON® TRUE1® TOP - OUT: 6x Schuko type F OUT and 1x powerCON® TRUE1® TOP |
1027442 |
| CPPSE6-TT |
IN: 1x powerCON® TRUE1® TOP - OUT: 6x Schuko type E OUT and 1x powerCON® TRUE1® TOP |
1027597 |
