CONTRIK / Professional Power Distribution / Power Strip Multicore CPSM* (EU) / Power Strip Multicore CPSM-H2-F6

Power Strip Multicore CPSM-H2-F6

Download Data Sheet

IN: 1 x Harting E16 – OUT: 6 x Schuko Typ F, 1 x Harting E16

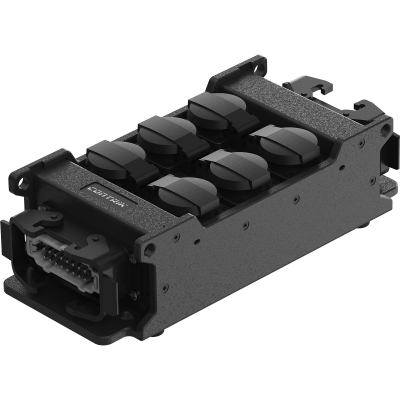

Power Strip Multicore are extremely rugged and compact distribution boxes which allow significant reduction of the cabling effort and cost due to the multicore inputs. It is ideally suited for outdoor usage and demanding mobile applications. 2 x Harting E16 In – 6 x Schuko Typ F

Features & Benefits
  • Reduction of cabling volume and effort due to Harting E16 multipin Input / Daisy-chain.
  • High mechanical protection: Rugged Easylen® housing with high IK, full connector protection with housing elements.
  • Xtreme Outdoor protection: IP54 with Harting E16 in mated condition, sealing caps

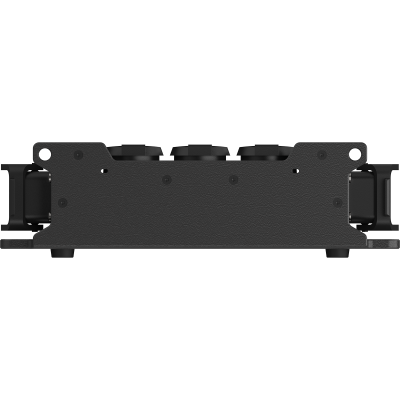

  • Very compact design: Height & Width only 96mm & 150mm due the stepped top plate.

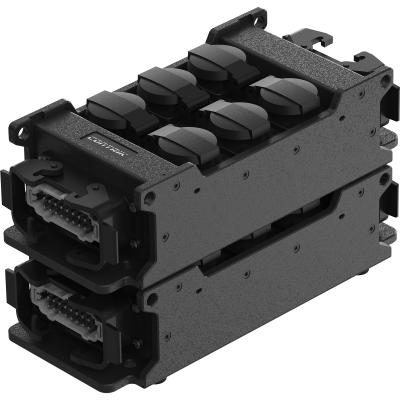

  • Easy transport & handling: stackable, lightweight, fully lockable. Options with the handle on the request.
  • Versatile mounting options: mounting wholes for pegs and suspension, truss clamp
Downloads
Drawing CPSMX-H2-F6 1037508
pdf - 995.83 KB
Drawing CPSMX-H2-F6 1037508
dxf - 4.71 MB
BDA 668 V2 - CONTRIK Manual - CPTM CPSM
pdf - 483.92 KB

Technical Information

Product
Input device 1 x Harting E 16 (6 channels) [1-9]
Output device 6 x Schuko Typ F with self-closing caps
Daisy chaining 1 x Harting E 16 (6 channels) [1-9]
Electrical
Contact resistance / protection class Dielectric strength Protection class II
Dielectric strength 0,5 kV / mm
Rated voltage 250V AC
Rated Current 16A
Mechanical
Dimensions 150 x 95,25 x 330mm
Weight
Conductor cross section 2,5 mm²
Mounting options Truss clamp (M10), mounting wholes for pegging or suspension
Type of construction Stackable
Material
Housing Easylen
Color black
Environmental
Flammability acc. to UL 94 V-2
Protection class IP54 with Harting E16 in mated condition
Temperature range -25 °C bis +40 °C
Accessories
Power multicore cables CKPE50- AHAH-Mx

Cable assemblies Harting E16; 6 channels; female - male; length 5, 10, 20, 30, 40m.

Sealing cap CLSC-H
Market & Application
  • Markets: Professional video wall / lighting / audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications: Theaters, studios
Ordering information
Article nameDetailsOrder code
CPSM-H2-F6IN / Daisy chain: 2x Harting E16,
OUT: 6 x Schuko Typ F		1037508
