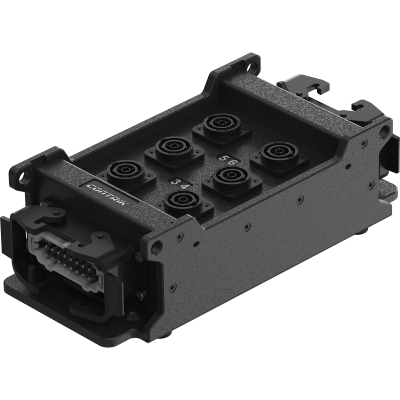

Power Strip Multicore CPSMX-H2-T6

Download Data Sheet

IN: 1 x Harting E16 – OUT: 6 x powerCON® TRUE1® TOP, 1 x Harting E16

Power Strip Multicore are extremely rugged and compact distribution boxes which allow significant reduction of the cabling effort and cost due to the multicore inputs. It is ideally suited for indoor usage and demanding mobile applications. IN: 1 x Harting E16 – OUT: 6 x powerCON® TRUE1® TOP, 1 x Harting E16

Features & Benefits

Reduction of cabling volume and effort due to Harting E16 multipin Input / Daisy-chain.
High mechanical protection: Rugged Easylen® housing with high IK, full connector protection with housing elements.

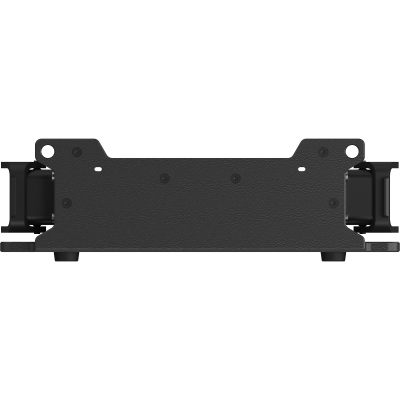

Very compact design: Height & Width only 96mm & 150mm due the stepped top plate.

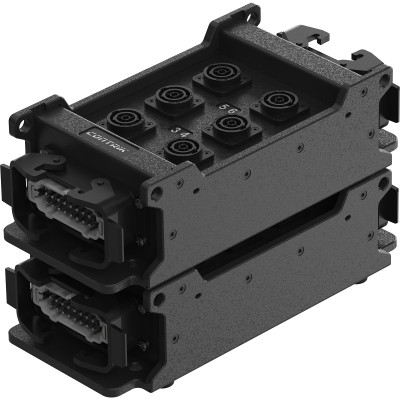

Easy transport & handling: stackable, lightweight, fully lockable. Options with the handle on the request.
Versatile mounting options: mounting wholes for pegs and suspension, truss clamp

Downloads

Drawing CPSMX-H2-T6 1037502

pdf - 2.08 MB

Drawing CPSMX-H2-T6 1037502

dxf - 10.84 MB

BDA 668 V2 - CONTRIK Manual - CPTM CPSM

pdf - 483.92 KB

Technical Information

Product
Input device	1 x Harting E 16 (6 channels) [1-9]
Output device	6 x powerCON® TRUE1® TOP
Daisy chaining	1 x Harting E 16 (6 channels) [1-9]

Electrical
Contact resistance / protection class Dielectric strength	Protection class II
Dielectric strength	0,5 kV / mm
Rated voltage	250V AC
Rated Current	16A

Mechanical
Dimensions	150 x 95,25 x 330mm
Weight
Conductor cross section	2,5 mm²
Mounting options	Truss clamp (M10), mounting wholes for pegging or suspension
Type of construction	Stackable
