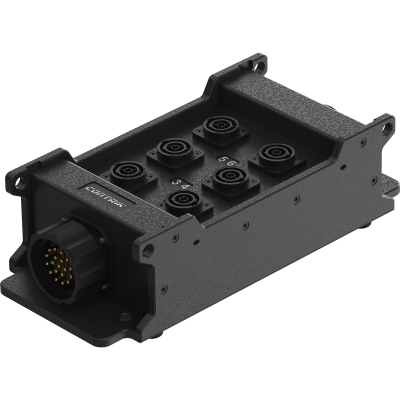

contrik_CPSMX-S2-T6_persp front_RGB_WEB
contrik_CPSMX-S2-T6_front_RGB_WEB

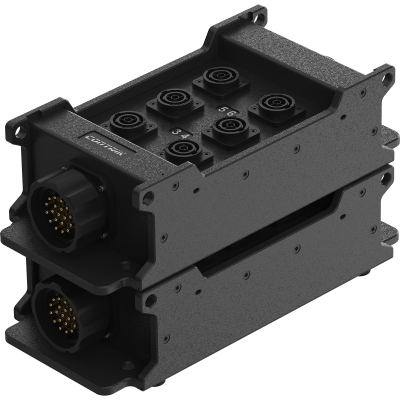

contrik_CPSMX-S2-T6-CPSMX-S2-T6-gestapelt_persp front_RGB_WEB
1/3
CONTRIK / Professional Power Distribution / Power Strip Multicore CPSM* (EU) / Power Strip Multicore CPSMX-S2-T6

Power Strip Multicore CPSMX-S2-T6

Download Data Sheet

IN: 1 x Socapex 419 compatible – OUT: 6 x powerCON® TRUE1® TOP, 1 x Socapex 419 compatible

Power Strip Multicore are extremely rugged and compact distribution boxes which allow significant reduction of the cabling effort and cost due to the multicore inputs. It is ideally suited for indoor usage and demanding mobile applications. 2 x Socapex 419 compatible In – 6 x powerCON® TRUE1® TOP Out

Features & Benefits
  • Reduction of cabling volume and effort due to Socapex 419 compatible multipin Input / Daisy-chain.
  • High mechanical protection: Rugged Easylen® housing with high IK, full connector protection with housing elements.
  • Very compact design: Height & Width only 96mm & 150mm due the stepped top plate.
  • Easy transport & handling: stackable, lightweight, fully lockable. Options with the handle on the request.
  • Versatile mounting options: mounting wholes for pegs and suspension, truss clamp
Downloads
Drawing CPSMX-S2-T6 1037506
pdf - 2 MB
Drawing CPSMX-S2-T6 1037506
dxf - 10.49 MB
BDA 668 V2 - CONTRIK Manual - CPTM CPSM
pdf - 483.92 KB

Technical Information

Product
Input device 1 x Socapex 419 compatible (6 channels)
Output device 6 x powerCON® TRUE1® TOP with self-closing caps
Daisy chaining 1 x Socapex 419 compatible (6 channels)
Electrical
Contact resistance / protection class Dielectric strength Protection class II
Dielectric strength 0,5 kV / mm
Rated voltage 250V AC
Rated Current 16A
Mechanical
Dimensions 150 x 95,25 x 330mm
Weight
Conductor cross section 2,08 mm²
Mounting options Truss clamp (M10), mounting wholes for pegging or suspension
Type of construction Stackable
Material
Housing Easylen
Color black
Environmental
Flammability acc. to UL 94 V-2
Protection class IP20
Temperature range -25 °C bis +40 °C
Accessories
audio
powerCON_cable-NAC3F-TRUE1-L-NAC3M-TRUE1-L_persp front_RGB_WEB.png
powerCON TRUE1 - Interconnection cordset rewirable

NEUTRIK® powerCON® TRUE1® Cables

Power multicore cables CKPE50-ASAS-Mx

Cable assemblies Socapex 419 compatible; 6 channels; female - male, connector with the length 5, 10, 20, 30, 40m
Markets & Applications
  • Markets: Professional video wall / lighting / audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications: Theaters, studios
Ordering information
Article nameDetailsOrder code
CPSMX-S2-T6IN / Daisy chaining: 2 x Socapex 419 compatible,
OUT: 6 x powerCON® TRUE1® TOP		1037506
