Power Turtle Xtreme Outdoor CPT-C2-T6-CB (EU)

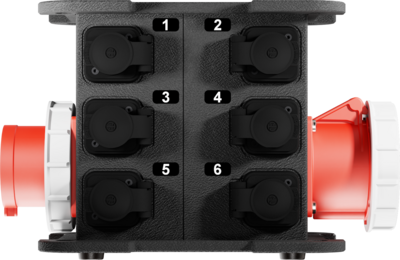

1x CEE32A In – 6x powerCON® TRUE1® TOP Out, 6x MCB circuit breakers
Power Turtle Active is an rugged compact distribution box which features separate circuit protection against the overload (MCB) for of each Out, and popular CEE32A connector for input & daisy chain. It is ideally suited for outdoor usage and demanding mobile applications. 1x CEE32A In – 6x powerCON® TRUE1® TOP Out, 6x MCB circuit breakers.
Features & Benefits
- High power capacity thanks to the CEE32A connector
- Circuit protection against overload for each of 6x Outs with separate MCB
- High durability & protection: rugged Easylen® housing with high IK, high IP with CEE connector in mated condition, self-closing caps, flame retardant & non-conductive housing material
- Easy transport & handling: stackable with other Power Turtles, lightweight, fully lockable
- Versatile mounting options: pegs, suspension, truss clamp
Markets & Applications
- Markets: Professional video wall / lighting / audio
- Mobile application: Festivals, live events
- Semi-permanent applications: Theaters, studios
Downloads
Drawing CPT-C2-T6-CB 41028847
octet-stream - 1002.1 KB
Drawing CPT-C2-T6-CB 41028847
pdf - 457.14 KB
Wiring diagramm CPT-C2-T6-CB 1028847
pdf - 26.13 KB
BDA 674 - Manual - CONTRIK Power Turtle Active - CPTCB - DE
pdf - 971.58 KB
BDA 684 - Manual - CONTRIK Power Turtle Active - CPT-CB - EN
pdf - 969.13 KB
Technical Information
| Product | |
|---|---|
| Input device | 1x CEE32A red |
| Daisy chaining | 1x CEE32A red with self-closing caps |
| Output device | 6x powerCON® TRUE1® TOP with self-closing caps |
| Electrical | |
|---|---|
| Circuit protection | 6x MCB (1-pole) |

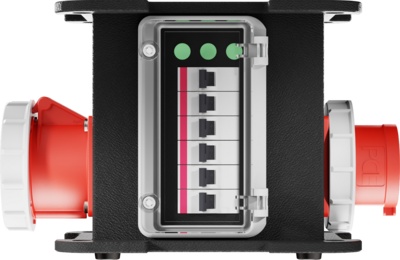

| Phase control indicator | L1, L2, L3, green |
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0,5 kV / mm |
| Rated voltage | 415V AC |
| Rated Current | 16A |
| Number of electrical contacts | 4 + PE |
| Phases | three-phase |
| Mechanical | |
|---|---|
| Dimensions | 225 x 155 x 188 mm |
| Weight | 3,3 kg |
| Conductor cross section | OUT: 2,08 mm² Daisy chaining: 6 mm² |
| Mounting options | Truss clamp (M10), mounting wholes for pegging or suspension |
| Type of construction | Stackable |
| Material | |
|---|---|
| Housing | Easylen |
| Color | black |
| Environmental | |
|---|---|
| Flammability acc. to UL 94 | V-2 |
| Temperature range | -25 °C bis +40°C |
Accessories
Ordering information
|
Article name
|
Details
|
Order code
|
|
CPT-C2-T6-CB
|
IN: 1x CEE32, Daisy Chain: 1x CEE32,
OUT: 6x powerCON T1 TOP, Circuit protection: 6x MCB (1-pole) |
1028847
|
