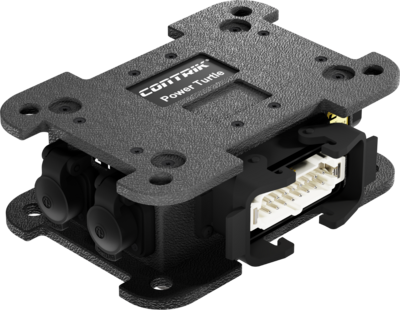

CPTM-H1-T6---Schräg

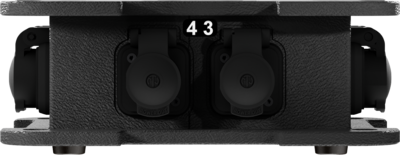

CPTM-H1-T6---HINTEN

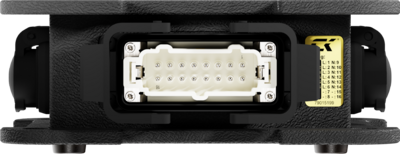

CPTM-H1-T6---FRONT
1/3
CONTRIK / Professional Power Distribution / Power Turtles (EU & U.S.) / Power Turtle Xtreme Outdoor CPTM-H1-T6 (EU)

Power Turtle Xtreme Outdoor CPTM-H1-T6 (EU)

Download Data Sheet

IN: 1x Harting E16 – OUT: 6x powerCON® TRUE1® TOP

Power Turtle Multicore are extremely rugged compact distribution boxes which allow significant reduction of the cabling volume, effort and cost due to the multicore input. It is ideally suited for outdoor usage and demanding mobile applications. 1x Harting E16 In – 6x powerCON® TRUE1® TOP Out

Features & Benefits
  • Reduction of cabling volume and effort due to Harting E16 multipin connectors. And Even more reduction of cabling due to the versions with 12x Outs
  • High durability & protection: Rugged Easylen® housing with high IK, IP65 with Harting E16 in mated condition, self-closing caps, lateral connector arrangement, flame retardant & non-conductive housing material
  • Very compact design: flat design, lateral connector arrangement, applications with restricted space.
  • Easy transport & handling: stackable with other Power Turtles, lightweight, fully lockable
  • Versatile mounting options: pegs, suspension, truss clamp


Markets & Applications


  • Markets: Professional video wall / lighting / audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications: Theaters, studios
Downloads
Drawing CPTM-H1-T6 41028228
octet-stream - 927.19 KB
Drawing CPTM-H1-T6 41028228
pdf - 332.4 KB
Wiring diagramm CPTM-H1-T6 1028228
pdf - 23.44 KB
BDA 668 - Manual - CONTRIK Power Turtles - CPTM - DE
pdf - 1.14 MB
BDA 680 - Manual - CONTRIK Power Turtles - CPTM - EN
pdf - 1.14 MB

Technical Information

Product
Input device 1x Harting E 16 (6 channels) [1-9]
Output device 6x powerCON® TRUE1® TOP with self-closing caps
Daisy chaining powerCON® TRUE1® TOP with self-closing caps
Electrical
Contact resistance / protection class Dielectric strength Protection class II
Dielectric strength 0,5 kV / mm
Rated voltage 250V AC
Rated Current 16A
Number of electrical contacts 2 + PE
Phases single-phase
Mechanical
Dimensions 225 x 173 x 87 mm
Weight 1,3 kg
Conductor cross section 2,08 mm²
Mounting options Truss clamp (M10), mounting wholes for pegging or suspension
Type of construction Stackable
Material
Housing Easylen
Color black
Environmental
Flammability acc. to UL 94 V-2
Protection class IP65 with Harting E16 in mated condition
Temperature range -25 °C bis +40 °C
Accessories
audio
powerCON_cable-NAC3F-TRUE1-L-NAC3M-TRUE1-L_persp front_RGB_WEB.png
powerCON TRUE1 - Interconnection cordset rewirable

NEUTRIK® powerCON® TRUE1® Cables

Power multicore cables CKPE50- AHAH-Mx

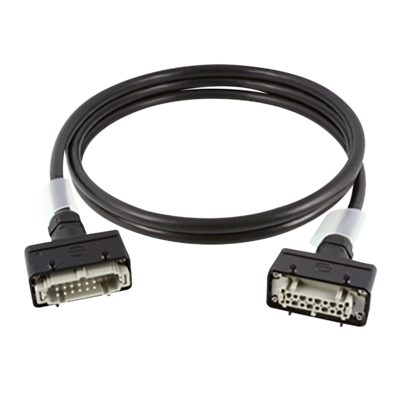

Cable assemblies Harting E16; 6 channels; female - male; length 5, 10, 20, 30, 40m.
Ordering information
Article name
Details
Order code
CPTM-H1-T6
IN: 1x Harting E16, £
OUT: 6x powerCON T1 TOP
1028228
