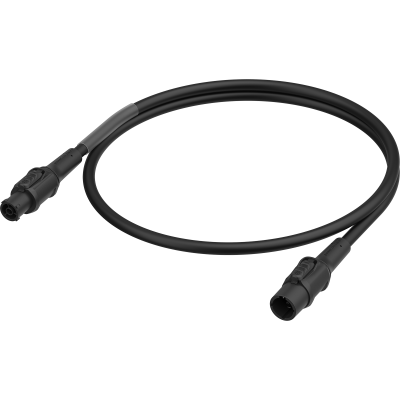

powerCON_cable-NAC3FT1-NAC3MT1_persp front_RGB_WEB(1) VORSCHAUBILD - COMPLIANCE
powerCON_cable-NAC3FT1-NAC3MT1_persp front_RGB_WEB(1)
VORSCHAUBILD - COMPLIANCE
1/2
CONTRIK / Professional Power Cables / ultimate powerCON TRUE1 Interconnection cord set

ultimate powerCON TRUE1 Interconnection cord set

Download Data Sheet

NEUTRIK ultimate interconnection cord sets boasts molded male and female powerCON TRUE1 connectors. These powerCON TRUE1 connectors are certified according EN IEC 60320-1.

All ultimate cord sets are manufactured in Europe, VDE tested and certified according EN IEC 60799.

Features & benefits
  • Interconnection cord set VDE certified acc. EN IEC 60799
  • powerCON TRUE1 connectors certified according EN IEC 60320-1
  • Breaking capacity
  • Superior antikink protection, ultra robust design
  • High quality TITNAEX® cables with 1,5mm2 and 2,5mm2 conductor cross section
  • TOP TRUE OUTDOOR PROTECTION: IP65 / UV resistant / corrosion resistant
  • Made in EUROPE
Downloads
23-135_NEUTRIK power cords ultimate series Broschure_11-2023_TXT
pdf - 7.09 MB
VDE Certificate 40057790
pdf - 333.67 KB
Certificate ENEC 40057741 (2025-01-25)
pdf - 304.47 KB
Certificate ENEC 40057733 (2025-01-23)
pdf - 310.73 KB
Article Variations
Article nameDetailsOrder code
NKPH03-M2M1-M02002 m / H07RN-F3G1.5 TITANEX® 1,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)1028919
NKPH04-M2M1-M02002 m / H07RN-F3G2.5 TITANEX® 2,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)1028920
NKPH03-M2M1-M00500,5 m / H07RN-F3G1.5 TITANEX® 1,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)1039679
NKPH03-M2M1-M01001 m / H07RN-F3G1.5 TITANEX® 1,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039680

NKPH03-M2M1-M01501,5 m / H07RN-F3G1.5 TITANEX® 1,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039681

NKPH03-M2M1-M03003 m / H07RN-F3G1.5 TITANEX® 1,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039682

NKPH03-M2M1-M05005 m / H07RN-F3G1.5 TITANEX® 1,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039683

NKPH04-M2M1-M00500,5 m / H07RN-F3G2.5 TITANEX® 2,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039684

NKPH04-M2M1-M01001 m / H07RN-F3G2.5 TITANEX® 2,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039685

NKPH04-M2M1-M01501,5 m / H07RN-F3G2.5 TITANEX® 2,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039686

NKPH04-M2M1-M03003 m / H07RN-F3G2.5 TITANEX® 2,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039687

NKPH04-M2M1-M05005 m / H07RN-F3G2.5 TITANEX® 2,5 mm2 / Molded powerCON TRUE1 (m) Molded powerCON TRUE1 (f)

1039688

ULTIMATE INTERCONNECTION CORD SET - RUBBER CABLE (NKPH03/04-M2M1)

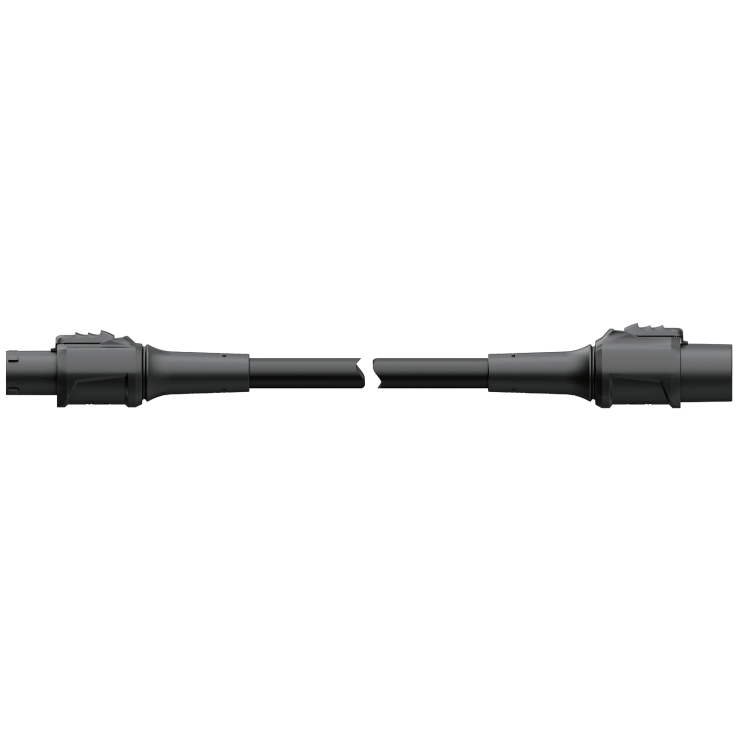

powerCON_NAC3FT1-NAC3MT1-cable cut_montage side
