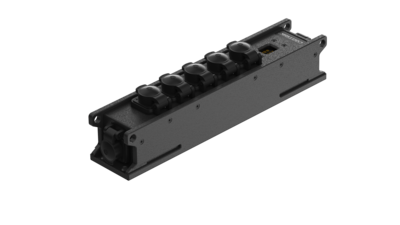

CPVT6RD-M schraeg1

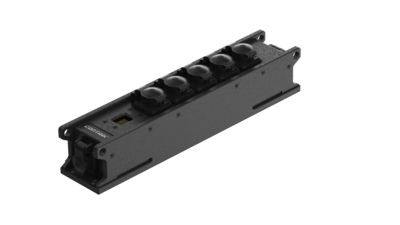

CPVT6RD-M schraeg2

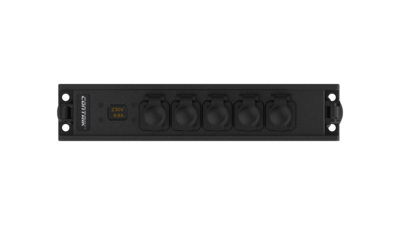

CPVT6RD-M schraeg top
1/5
CONTRIK / Professional Power Distribution / Power Strips (EU & U.S.) / Power Strip XO CPVT6RD-M (EU)

Power Strip XO CPVT6RD-M (EU)

Download Data Sheet

1x powerCON TRUE1 IN – 6x powerCON® TRUE1® TOP OUT - Power Meter

Power Strip Xtreme Outdoor (XO) is a compact distribution solution for mobile outdoor applications where power meter is required.  Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions. 1x powerCON® TRUE1® TOP In, 6x powerCON® TRUE1® TOP Out, Power Meter.

Features & Benefits
  • Extreme robust and safe EASYLEN® housing with leather grain texture
  • Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for In, Out and Daisy chaining
  • Flame retardant (UL94-V2) and non-conductive housing material
  • High outdoor protection (IP65, IK, ..)
  • Meter with protected and lit voltage and current consumption display
  • Light weight, compact and stackable housing design
  • Versatile mounting options
Downloads
Drawing CPVT6RD-M 1035587
pdf - 439.41 KB
BDA 675 V1 - CONTRIK Manual - Power Strip XO and Power Turtle XO- CPVT - 202307
pdf - 1.24 MB
Drawing CPVT6RD-M 1035587
vnd.dwg - 886.11 KB
BDA 685 V1 - CONTRIK Manual - Power Strip XO and Power Turtle XO- CPVT - 202307
pdf - 1.24 MB

Technical Information

Product
Input device 1x powerCON® TRUE1® TOP with self-closing caps
Output device 6x powerCON® TRUE1® TOP with self-closing caps
Daisy chaining 1x powerCON® TRUE1® TOP with self-closing caps
Power meter Protected and lit screen with current and voltage display
Electrical
Contact resistance / protection class Protection class II
Dielectric strength 0,5 kV / mm
Rated voltage 250V AC
Rated Current 16A (USA: 20A)
Number of electrical contacts 2 + PE
Phases single-phase
Mechanical
Lifetime > 5000 Mating cycles per connector
Dimensions 380 x 91.2 x 77 mm
Conductor cross section 2.08 mm²
Weight 1.27 kg
Mounting options Truss clip, mounting wholes for pegging or suspension
Material
Housing Easylen
Color black
Environmental
Standards compatibility UL94-V2
Protection class IP65
Temperature range -25 °C bis +50°C
Accessories
CCL75-P2
audio
powerCON_cable-NAC3F-TRUE1-L-Schuko2_persp front_RGB_WEB.png
powerCON TRUE1 - Schuko cordset rewirable

NEUTRIK® Cables with CEE Mains Plug to powerCON®
Market & Applications
  • Markets: Professional video wall / lighting / audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications: Theaters, studios

Article Variations
Article nameDetailsOrder code
CPVT6RD-M IN: 1 x powerCON® TRUE1® TOP - OUT: 6 x powerCON® TRUE1® TOP – Power Meter  1035587
