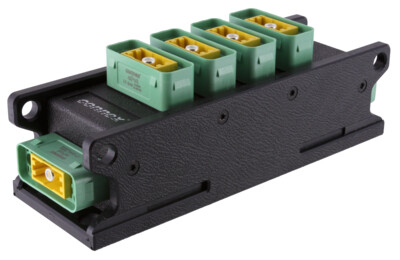

CP-BV6-R
cPot Strip
The cPot Strip is a compact ruggedized distribution box for mobile grounding / potential equalization applications. Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions. 6x cPot male IN / OUT.
Features & Benefits
- Extreme robust and safe EASYLEN® housing with leather grain texture
- Flame retardant (UL94-V2) and non-conductive housing material
- High outdoor protection (IP54, IK, ..),
- Light weight and compact housing design
- Versatile mounting options
- Stainless steel screws
- M10 thread at the bottom
Technical Information
| Product | |
|---|---|
| Description | CP-BV6-R |
| Electrical | |
|---|---|
| Conductor cross section | Earth bar |
| Mechanical | |
|---|---|
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Dimension | 220 x 77 x 61 mm |
| Material | |
|---|---|
| Housing | Easylen® |
| Color | black |
| Environmental | |
|---|---|
| Standards compatibility | UL94-V2 |
| Protection class | IP54 in mated condition |
| Temperature range | -40 °C to 50°C |
Accessories
Article Variations
| Article name | Details | Order code |
| CP-BV6-R | cPot Strip. 6x cPot [m] | 1027377 |
