CP-FV6-RT

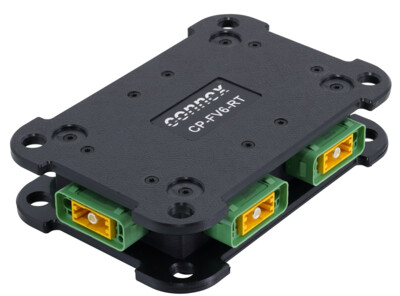

cPot Turtle
The cPot Turtle is a compact ruggedized distribution box for mobile grounding / potential equalization applications. Rugged EASYLEN® housing is ideally suited for outdoor usage and demanding applications under harsh conditions. 6 x cPot male IN / OUT
Features & Benefits
- Extreme robust and safe EASYLEN® housing with leather grain texture ¨
- Flame retardant (UL94-V2) and non-conductive housing material
- High outdoor protection (IP54, IK, ..),
- Light weight, compact and stackable housing design
- Versatile mounting options
- Long edges to protect the cPot plugs
- Stainless steel screws
- M10 thread at the bottom
Technical Information
| Product | |
|---|---|
| Description | CP-FV6-RT |
| Electrical | |
|---|---|
| Conductor cross section | Earth bar |
| Mechanical | |
|---|---|
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Material | |
|---|---|
| Housing | Easylen® |
| Color | black |
| Environmental | |
|---|---|
| Standards compatibility | UL94-V2 (connector) |
| Protection class | IP54 in mated condition |
| Temperature range | -40 °C to 50°C |
Accessories
Article varations
| Article name | Details | Order name |
| CP-FV6-RT | cPot Turtle. 6x cPot [m] with holes for ground nail | 1027381 |
