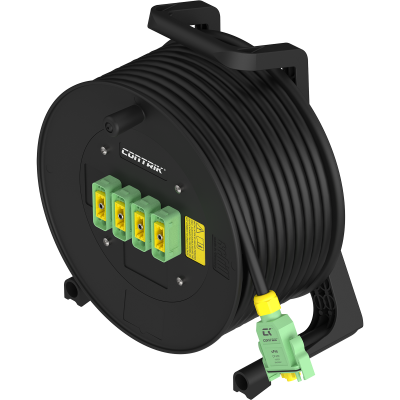

contrik_CP-D2M4-xxx_persp front_RGB_WEB
contrik_CP-D2M4-xxx_front_RGB_WEB

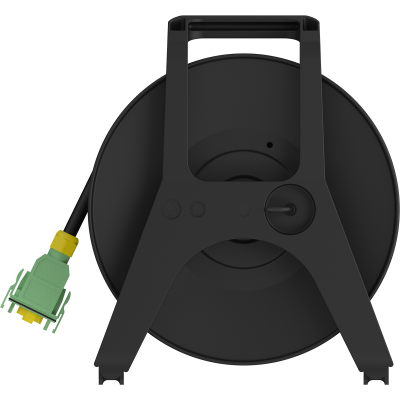

contrik_CP-D2M4-xxx_back_RGB_WEB
1/3
CONTRIK / Equipotential Bonding System cPot / cPot drum / cPot drum CP-D2M4-X*F -*

cPot drum CP-D2M4-X*F -*

Download Data Sheet

IN: 1 x cPot (m) – OUT: 4 x cPot (f)

cPot cable on drum featuring multiple cPot output sockets. This innovative solution is not only replacing cPot cable & distribution box, but also allowing more swift and effortless installation / deinstallation. This feature is particularly crucial for mobile applications. And all within your budget.

Features & Benefits
  • Swift and effortless installation / deinstallation facilitated by the high-performance Schill drum
  • High quality components, including Schill drums and rubber cables
  • Competitive pricing
Downloads
Drawing CP-D2M4
pdf - 576.13 KB
Drawing CP-D2M4
vnd.dwg - 917.23 KB
BDA 707 V1 - CONTRIK Manual - cPot Trommel - 202401
pdf - 2.67 MB
Accessories

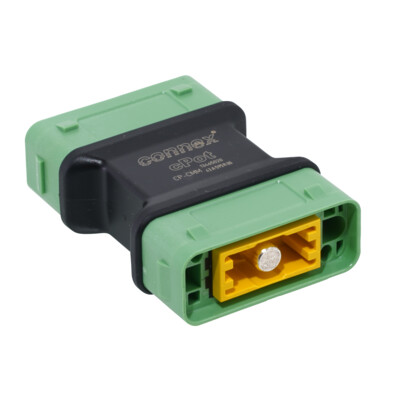

CP-CMM CONNEX_13465020_vv_cPot_Erdungssystem.tif
CP-MM

cPot coupler
Market & Application
  • Markets: Professional video wall / lighting / audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications: Theaters, studios
Ordering information
Article nameDetailsOrder code
CP-D2M4-X25F-025

Drum: Schill 310 with 4xcPot connector (m)
Cable: 25mm2 rubber cable with cPot connector (f)

Length: 25m

1037514
CP-D2M4-X16F-025

Drum: Schill 310 with 4xcPot connector (m)
Cable: 16mm2 rubber cable with cPot connector (f)

Length: 25m

1037515

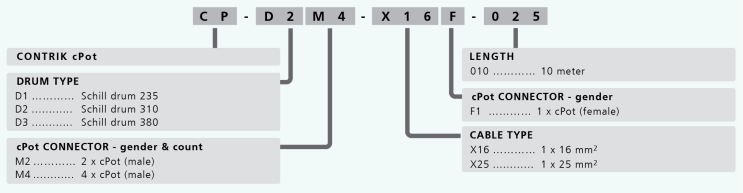

Partnumber Breakdown

cPot drum type descriptions
