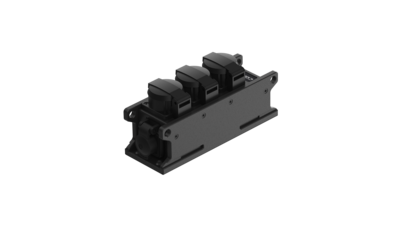

contrik_CPPSF[E]3RD-TT_persp back

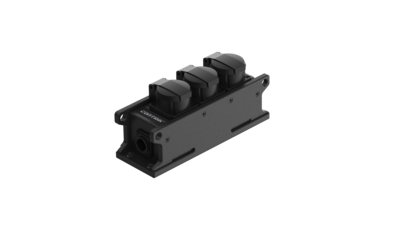

contrik_CPPSF[E]3RD-TT_persp front

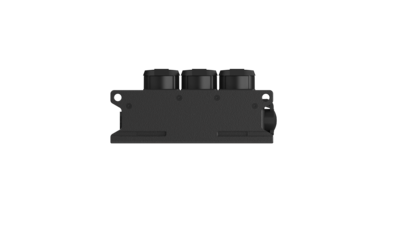

contrik_CPPSF[E]3RD-TT_front
1/3
CONTRIK / Professional Power Distribution / Power Strips (EU & U.S.) / Power Strip XO CPPS3RD-TT (EU)

Power Strip XO CPPS3RD-TT (EU)

Download Data Sheet

Power Strip Xtreme Outdoor. 1x powerCON® TRUE1® TOP IN - 3xSchuko Type E / F & 1x powerCON® TRUE1® TOP OUT

Power Strip Xtreme Outdoor (XO) is a compact distribution solution for mobile applications. Rugged EASYLEN® housing is ideally suited for demanding applications under harsh conditions. 1x powerCON® TRUE1® TOP In and up to 6x  Schuko Type E / F Out & 1x powerCON® TRUE1® TOP Out

Features & Benefits
  • Highly reliable NEUTRIK® powerCON® TRUE1® TOP recepticals for IN and daisy chaining, Mains receptacles Schuko Type E/F
  • Flame retardant (UL94-V2) and non-conductive housing material
  • High outdoor protection (IP54, IK, ..)
  • Light weight, compact and stackable housing design
  • Versatile mounting options



Market & Applications


  • Markets: Professional video wall / lighting / audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications: Theaters, studios
Downloads
CPPSF[E]3RD-TT_Drawing_01
vnd.dwg - 548.57 KB
CPPSF[E]3RD-TT_Drawing_01
pdf - 209.31 KB
BDA 672 - Manual - CONTRIK Power Strip X - CPPS-RD - DE
pdf - 983.41 KB
BDA 682 - Manual - CONTRIK Power Strip XO - CPPS-RD - EN
pdf - 981.28 KB

Technical Information

Product
Input device 1x powerCON® TRUE1® TOP
Output device CPPSE3RD-TT: 3x Schuko Type E with self-closing caps
CPPSF3RD-TT: 3x Schuko Type F with self-closing caps
Daisy chaining 1x powerCON® TRUE1® TOP with self-closing caps
Electrical
Contact resistance / protection class Protection class II
Dielectric strength 0,5 kV / mm
Rated voltage 250V AC
Rated Current 16A (USA: 20A)
Number of electrical contacts 2 + PE
Phases single-phase
Mechanical
Dimensions 224,7 x 77 x 100,6mm
Conductor cross section 2,5 mm²
Weight 0.72 kg
Mounting options Truss clip, mounting wholes for pegging or suspension
Material
Housing Easylen
Color black
Environmental
Standards compatibility UL94-V2
Protection class IP54
Temperature range -25 °C to +70 °C
Accessories
CCL75-P2
video
powerCON_cable-NAC3F-TRUE1-L-Schuko2_persp front_RGB_WEB.png
powerCON TRUE1 - Schuko cordset rewirable

NEUTRIK® Cables with CEE Mains Plug to powerCON®
video
powerCON_cable-NAC3F-TRUE1-L-NAC3M-TRUE1-L_persp front_RGB_WEB.png
powerCON TRUE1 - Interconnection cordset rewirable

NEUTRIK® powerCON® TRUE1® Cables
Article Variations
Article name Details Order code
CPPSE3RD-TT  IN: 1 x powerCON® TRUE1® TOP - OUT: 3 x Schuko Type E  1027604
CPPSF3RD-TT  IN: 1 x powerCON® TRUE1® TOP - OUT: 3 x Schuko Type F   1027449
