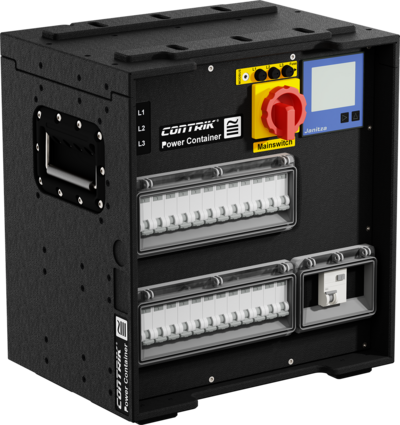

Power Container Xtreme Outdoor CPC63-C1-H4-CBM

Power Container Xtreme Outdoor CPC63-C1-H4-CBM

1x CEE63A IN – 4x E16 Multipin OUT – 1x cPot OUT – Circuit breakers
Power Container is a highly reliable, rugged and first level powerful distribution solution. The Power Container allows reduction of cabling effort & cost, circuit protection and power measurement. It is ideally suited for demanding mobile applications esp. video walls, lighting, and others.

Download Data Sheet

Selection of topics

Features & Benefits Downloads Technical Information Accessories

Download Data Sheet

Features & Benefits

High durability & protection: rugged Easylen® housing with high IK, IP44 with CEE / cPot in mated condition, self-closing caps, connector protection, flame retardant & non-conductive housing material
Easy transport & handling: compact, stackable, fully lockable, integrated handles
Reduction of cabling volume and effort due to 4x Harting E16 Multipin Outs
Minimization of failure impact on the event. Due to separate protection of each OUT channel against overload and electric shock (63A version)
High quality of component and assembly add to high reliability and safety of the power distribution and the event

Markets & Applications

Markets: LED walls, Lighting, Other
Mobile applications: Festivals, live events
Semi-permanent applications: Theaters, studios, fairs

Downloads

Order information

Product title

Details

Order code

CPC63-C1-H4-CBM

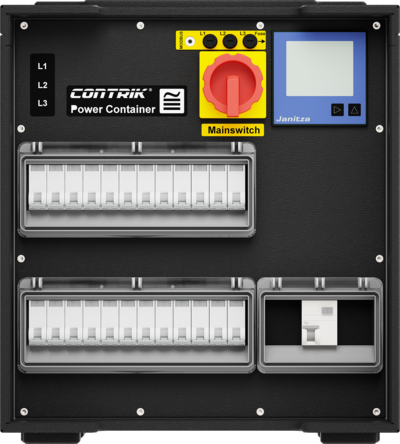

Front. 1x main switch 4-pin; LED mains monitor L1, L2, L3 (after HS); 1x measuring device Selec MFM 384, 3-wire, Modbus interface, (in front of HS); Fusing (under self-closing protective windows): 25x RCBO C16/0.03A (1-pole + N).

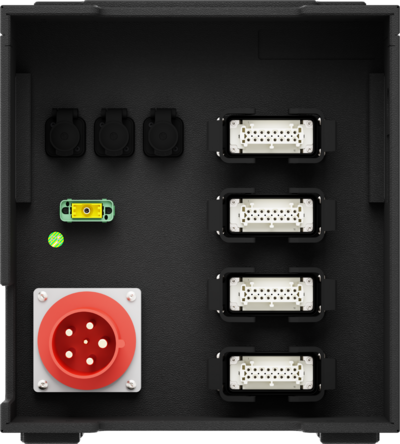

Back. In: CEE 63A 5-pin plug connector, red; Out: 4x Harting HanE 16-pin panel socket (6 channels, assignment 1-9) with sealing cap, 3x powerCON TRUE1 panel socket self-closing caps, cPot ground connection. Housing made of flame-retardant, impact-resistant Easylen® with leather grain; Structure similar to protection class II, IP44, stacking rails at the top, foot runners, folding handles on the side. Dimensions (WTH): approx. 395 x 295 x 405mm

1028226

Technical Information

Product
Input device	1x CEE63A 5P red
Output device	4x Harting E16 6ch [1-9] (24 RCBOs) 3x PowerCON TRUE1 TOP (1x RCBO) 1x cPot
Main switch	4pol
Power meter	Selec MFM 384

Electrical
Circuit protection	25x RCBO (1-pole + N)
Phase control indicator	L1, L2, L3, green
Rated voltage	415V/AC, 50Hz
Rated Current	In: 63A

Mechanical
Type of construction	Stackable
Dimensions	ca. 395 x 295 x 405 mm
Weight	17,9 kg

Material
Housing	Easylen®
Color	black

Environmental
Protection class	IP44 with CEE and cPot in mated condition
Temperature range	-5 °C to +40 °C

Accessories

powerCON TRUE1 - Interconnection cordset rewirable

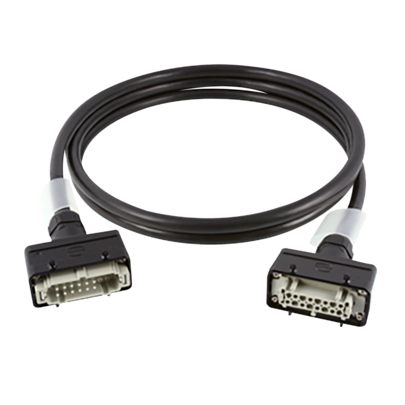

Power multicore cables CKPE50- AHAH-Mx
