POWER RACK XTREME CPRX32-C1-C2T3F3-RB
On request modification.
IN: Input cable 2m 1x CEE32A, OUT: 2x CEE16A, 3x powerCON TRUE1, 3x Schuko Type F.
Power Rack Xtreme is a powerful and highly reliable distribution solution for installation in the 19” Rack. It is ideally suited for amplifier rack wiring application.
Features & Benefits
- High quality electrical and electronical component from the renowned brands
- Circuit protection with residual current device (RCCB) and miniature circuit breakers (MCB)
- High quality assembly in EU
- Attractive price / value ratio
Technical Information
| Product | |
|---|---|
| Input device | 1x Input cable 2m 1x CEE32A |
| Daisy chain | 2x CEE16A (6x MCB 1P, 1x RCCB 40A 3P+N) 3x powerCON TRUE1 and 3 x Schuko Type F (6x MCB 1P, 1x RCCB 40A 3P+N) 1x cPot |
| Output device | |
| Main switch | |
| Power meter | |
| Electrical | |
|---|---|
| Phase control indicator | |
| Rated voltage | 400V |
| Rated Current | 32A |
| Mechanical | |
|---|---|
| Weight | |
| Type of construction | 19“ Housing 3 HE |
| Material | |
|---|---|
| Housing | Metal |
| Color | Black |
| Environmental | |
|---|---|
| Protection class | IP20 |
| Temperature range | -5 to +40°C |
Accessories
Markets & Applications
- Markets: Professional audio esp. amp rack wiring / lighting / video wall
- Mobile applications: Festivals, live events. Control panels / rooms.
- Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.
Ordering information
| Article name | Details | Order code |

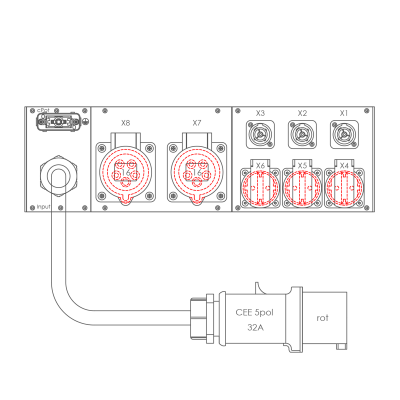

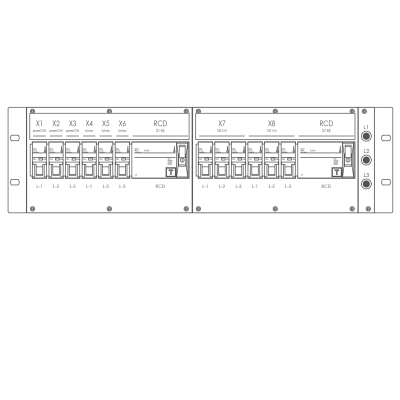

| CPRX32-C1-C2T3F3-RB | Front: 12x MCB (1-pole), 2x RCCB (3-pole + N), Back: IN: 1x Input cable 2m, 1x CEE32A, OUT: 2x CEE16A, 3x powerCON TRUE1, 3 x Schuko Type F. | 1038249 |
