POWER RACK XTREME CPRX63-C1-H4C1T6-ROM
On request modification.

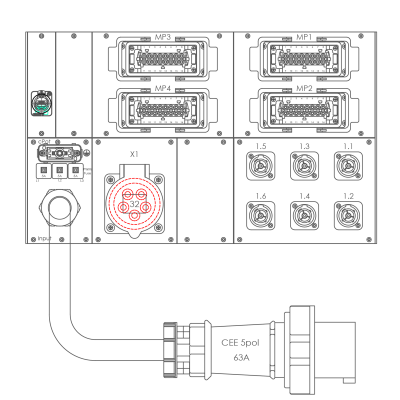

IN: Input cable 2m 1x CEE63A, OUT: 4x Harting E16, 1x CEE32A, 6x powerCON TRUE1 TOP.
Power Rack Xtreme is a powerful and highly reliable distribution solution for installation in the 19” Rack. It is ideally suited for amplifier rack wiring application.
Features & Benefits
- High quality electrical and electronical component from the renowned brands
- Circuit protection with residual current device with overcurrent protection (RCBO)
- High quality assembly in EU
- Attractive price / value ratio
Technical Information
| Product | |
|---|---|
| Input device | IN: 1x Input cable 2m with CEE63A |
| Daisy chain | |
| Output device | 4x Harting E16 6ch [1-9] ( 24x RCBO (1-pole+N)) 1x CEE32A (1x MCB C32 3-pole+N with adjustable residual current monitoring ABB RD3P with fuse protection) 6x powerCON TRUE1 TOP (parallel to Harting 1) 1x Neutrik EtherCON 1x cPot |
| Main switch | 1x main switch 4-pin |
| Power meter | Janitza UMG96RM-E |
| Electrical | |
|---|---|
| Phase control indicator | |
| Rated voltage | 400V |
| Rated Current | 63A |
| Mechanical | |
|---|---|
| Weight | |
| Type of construction | 19“ Housing 6 HE |
| Material | |
|---|---|
| Housing | Metal |
| Color | Black |
| Environmental | |
|---|---|
| Protection class | IP20 |
| Temperature range | -5 to +40°C |
Accessories
Markets & Applications
- Markets: Professional audio esp. amp rack wiring / lighting / video wall
- Mobile applications: Festivals, live events. Control panels / rooms.
- Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.
Ordering information
| Article name | Details | Order code |

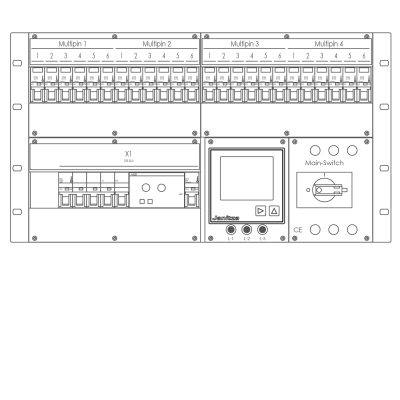

| CPRX63-C1-H4C1T6-ROM | Front: 24x RCBO (1-pole+N), 1x adjustable residual current monitoring ABB RD3P with fuse protection, 1x measuring device Janitza UMG96RM-E with Ethernet interface, 1x main switch, Back: IN: 1x Input cable 2m with CEE63A, OUT: 4 x Harting E16, 1x CEE32A, 6 x powerCON TRUE1 TOP | 1038252 |
