CP-LT
cPot cable connector kit
cPot connector kits is a solution for field assembly / field repair of female and male connectors.
Features & Benefits
- The solution for field assembly / field repair of female and male connectors
- Female assembly kit are used for field cable assembly / field repair of cPot cables.
- Male cable assemblies are also used for installation / conduit installation of the fixed connection points.
Downloads
Technical Information
| Product | |
|---|---|
| Description | CP-LTFA |
| CP-LTMA | |

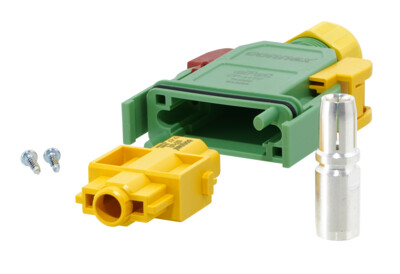

| Scope of delivery | CP-LTFA: 1x Tüllengehäuse female grün, 1x Einsatz female gelb, 1x Axialkontakt 10-25mm² female, 1x Verschraubung gelb, 1x Sicherungsclipse gelb, 1x Sicherungsclipse rot, 2x Blechschraube 2,9x9,5mm |
| CP-LTMA: 1x Kupplungsgehäuse male grün, 1x Einsatz male gelb, 1x Axialkontakt 10-25mm² male, 1x Verschraubung gelb, 2x Blechschraube 2,9x9,5mm | |
| CP-HTF: Für Kabel ø=7,5-14mm, inkl. 2x Blechschraube 2,9x9,5mm lose | |
| Electrical | |
|---|---|
| Contactor resistance | ≤0,3 mΩ |
| Mechanical | |
|---|---|
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Conductor cross section | 16 mm2 , 25 mm2 |
| Material | |
|---|---|
| Cable Jacket Type | Rubber |
| Contact | 1 contact, copper alloy |
| Shell | Polycarbonat (PC) |
| Environmental | |
|---|---|
| Standards compatibility | UL94-V0 (connector) |
| Protection class nach IEC 60529 | IP65 in mated condition |
| Temperature range | -40 °C – 55°C |
Article Variations
| Article name | Details | Order name |
| CP-LTFA | Connector kit female PE axial 10-25 mm² ø=7,5-14 mm | 1027369 |
| CP-LTMA | Connector kit male PE axial 10-25 mm² ø=7,5-14 mm | 1027372 |
| CP-HTF | Connector housing female | 1028484 |
