POWER RACK XTREME CPRX63-C1-H4T6-ROM
On request modification.

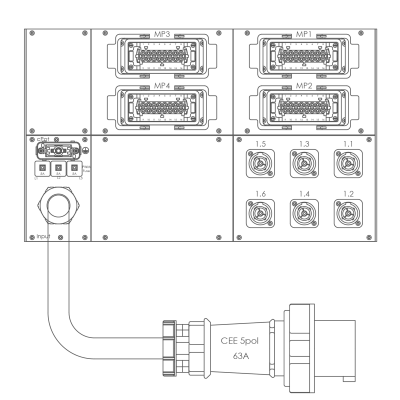

IN: Input cable 2m 1x CEE63A, OUT: 4x Harting E16, 6x powerCON TRUE1 TOP.
Power Rack Xtreme is a powerful and highly reliable distribution solution for installation in the 19” Rack. It is ideally suited for amplifier rack wiring application.
Features & Benefits
- High quality electrical and electronical component from the renowned brands
- Circuit protection with residual current device (RCCB) and miniature circuit breakers (MCB)
- High quality assembly in EU
- Attractive price / value ratio
Downloads
Technical Information
| Product | |
|---|---|
| Input device | IN: 1x Input cable 2m with CEE63A |
| Daisy chain | |
| Output device | 4x Harting E16 6ch [1-9] 24x RCBO (1-pole+N) 6x powerCON TRUE1 TOP (parallel to Harting 1) 1x cPot |
| Main switch | 1x main switch 4-pin |
| Power meter | 1x Selec MFM 384 |
| Electrical | |
|---|---|
| Phase control indicator | |
| Rated voltage | 400V |
| Rated Current | 63A |
| Mechanical | |
|---|---|
| Weight | |
| Type of construction | 19“ Housing 6 HE |
| Material | |
|---|---|
| Housing | Metal |
| Color | Black |
| Environmental | |
|---|---|
| Protection class | IP20 |
| Temperature range | -5 to +40°C |
Accessories
startpage
Power multicore cables CKPE50- AHAH-Mx
Cable assemblies Harting E16; 6 channels; female - male; length 5, 10, 20, 30, 40m.
startpage

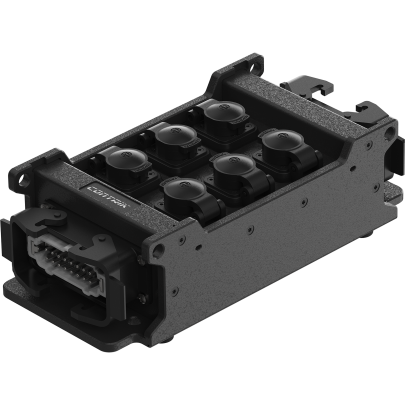

Power Strip Multicore CPSM-H2-T6
audio

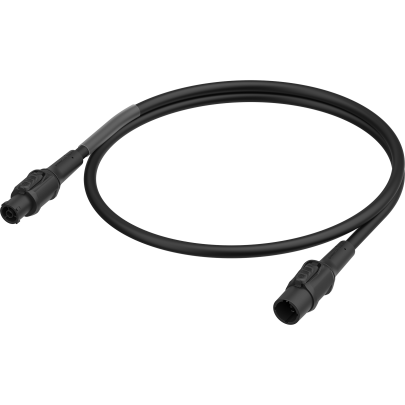

powerCON TRUE1 - Interconnection cordset rewirable
NEUTRIK® powerCON® TRUE1® Cables
audio
ultimate powerCON TRUE1 Interconnection cord set
Ultimate Series powerCON TRUE1 Interconnection cord set

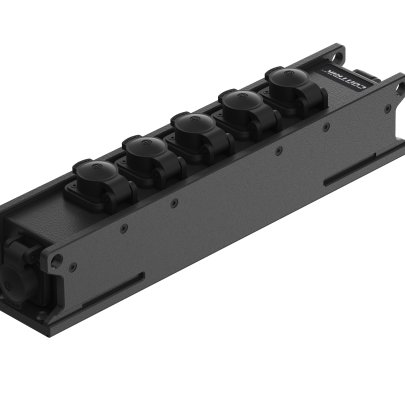

Power Strip XO CPVT6RD (EU)
IN: 1x powerCON TRUE1 – OUT: 6x powerCON® TRUE1® TOP
Markets & Applications
- Markets: Professional audio esp. amp rack wiring / lighting / video wall
- Mobile applications: Festivals, live events. Control panels / rooms.
- Semi-permanent applications: Theaters, studios, fairs. Control panels /rooms.
Ordering information
| Article name | Details | Order code |

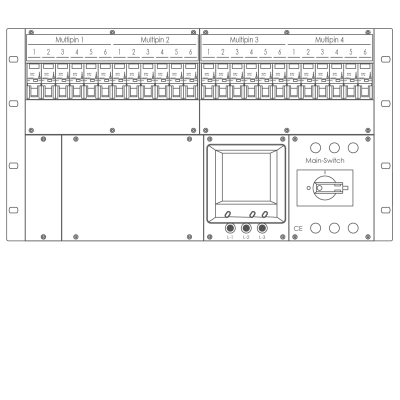

| CPRX63-C1-H4T6-ROM | Front: 24x RCBO (1-pole+N), 1x measuring device Selec MFM 384, 1x main switch 4-pin, Back: IN: 1x Input cable 2m with CEE63A, OUT: 4x Harting E16, 6x powerCON TRUE1 TOP | 1038252 |
